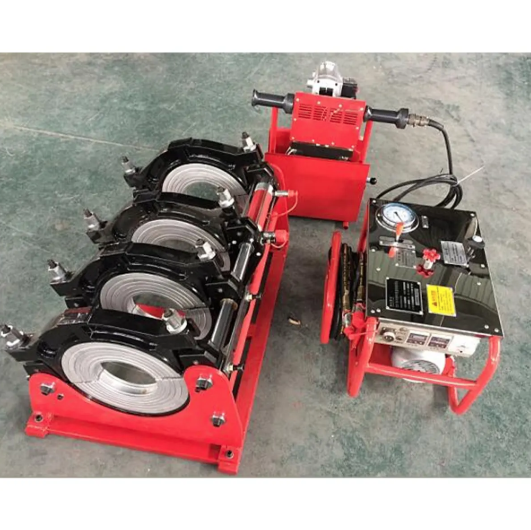

SDY-315-160 Butt fusion welding machine

SDY-315-160 Butt fusion welding machine

Short Description:


Hydraulic Butt Fusion Welding Machine description

This machine is applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And the other feature of it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.


Product Detail

Product Tags

Specifications

1Equipment name and modelSDY-315/160 Hydraulic Butt Fusion Welding Machine
2Weldable pipe range (mm)Ф315，Ф280，Ф250，Ф225，Ф200，Ф180，Ф160
3Docking deviation≤0.3mm
4Temperature error±3℃
5Total power consumption4.25KW/220V
6Operating temperature220℃
7Ambient temperature-5  -  +40℃
8Time required to reach the welder temperature＜ 20min
9Weldable materialPE  PPR PB  PVDF
10Package size1、Frame103*66*64Net weight 103KGGross weight 116KG
2、Hydraulic station 70*53*50Net weight 48KGGross weight 53.6KG
3、Basket (including milling cutter, hot plate) 66*55*88Net weight 46KGGross weight 53KG


HDPE pipe welding machine Features

1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.

2. Removable PTFE coated heating plate with separate temperature control system.

3. Electric milling cutter with reversible double cutting edge blades.

4. Hydraulic unit provides welding machine with compressing power.

5. Be made of lightweight and high strength material; simple structure and easy to operate.

6. Low starting pressure ensures reliable welding quality of small pipes.

7. Separate two-channel timer shows time in soaking and cooling phases.

8. High-accurate and shockproof pressure meter indicates clearer readings.


Our Service

1. About sample: If you have any need, don't hesitate to contact us, we will promptly provide samples to you

2. We can customize product according to the requirements of customers.

3. Your inquiry related to our product or price will be replied in 24 hours.

4. Protection of your sales area, ideas of design and all your private information.
